Petrol Chipper - Spare Parts

Petrol Chipper - Spare Parts

Description

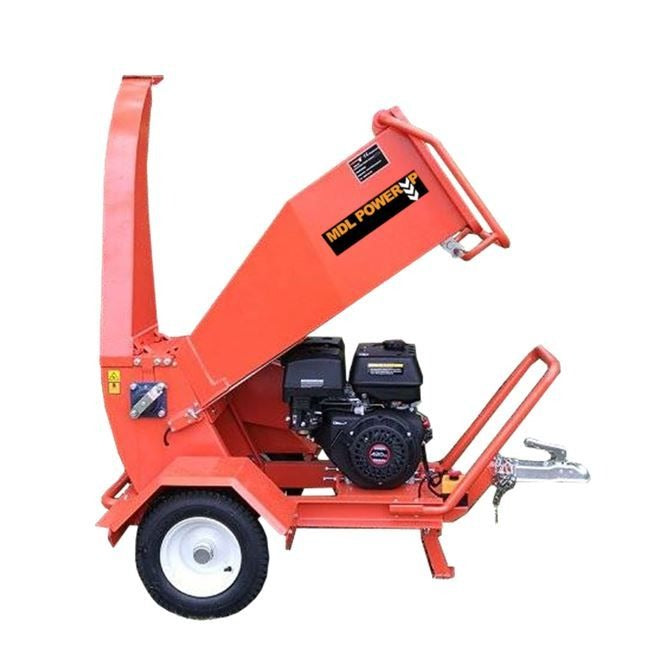

This Chipper is an ideal choice for Arborists, Land owners and Gardner’s alike. With its own independent Engine, there’s no need for a tractor to power this surprisingly powerful compact chipper. Built on an extremely well-engineered, heavy duty chassis, great for pulling off road but small enough to get through narrow gate ways and paths. With 2 hardened blades on the rotor and 1 counter blade on the Chassis it creates great quality chip with ease. Double V belts running in parallel ensure a cool running drive. Hitch draw bar supplied and also bolt on pedestrian handle. Now safer than ever, with emergency stop bar and button! Our most popular machine is this little 15HP Petrol Chipper. This machine offers large capability at small price.

Available Parts List

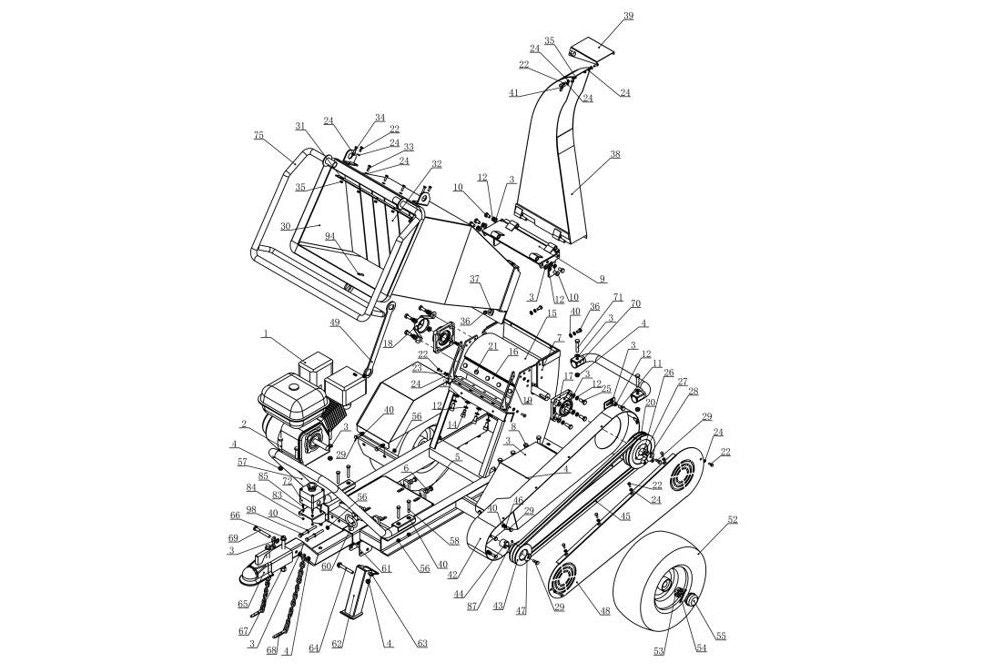

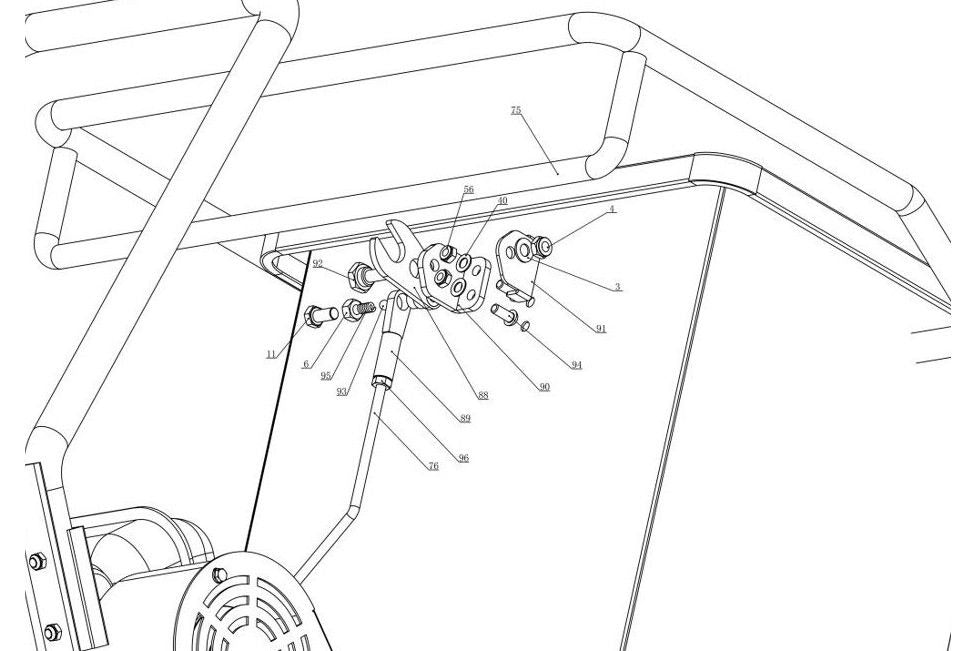

You can use the exploded parts image to cross reference with the part you require.

Drawing No. Name Style Quantity
1Engine1
2Hexagon BoltM10X454
3Flat Washer C1036
4Nonmetal Inserts Hexagon Lock NutM1017
5Hexagon BoltM10X604
6Hexagon NutM105
7Case Assy1
8Hexagon BoltM10X308
9Case Cover1
10Hexagon BoltM10X165
11Hexagon BoltM10X202
12Spring Washer1019
13Dead Knife1
14Hexagon Socket Cap ScrewM10X205
15Rotor Assembly1
16Knife2
17square bearingFYJ5062
18Bearing Cover Clamp1
19Rotor Protector2
20Belt Pulley1
21Special BoltM10X3010
22Hexagon BoltM6X1516
23Standard Spring Washer64
24Flat Washer C624
25Hexagon BoltM10X258
26Flat Key10×301
27Hexagon Socket Flat Set ScrewM12×203
28Rotor Safe Ring1
29Hexagon BoltM8X2014
30Feed Chute Assy1
31Rubber Trim Strip1
32Rubber Cladding1
33Hexagon BoltM6X203
34Hexagon BoltM6X252
35Nonmetal Inserts Hexagon Lock NutM69
36Hexagon BoltM8X164
37Large Washer C9X24X22
38Outlet Hopper Assy1
39Deflector1
40Flat Washer C822
41Butterfly BoltM6×151
42Belt Cover Assy1
43Belt Pulley1
44Pulley Spacer Bush1
45Belt2
46Standard Spring Washer86
47Engine Safety Ring1
48Belt Cover Cap1
49Rotor Adjust Plate1
50Bracket Assy1
51Mud guard2
52Tyre2
53Hexagon Thin Slotted NutM242
54Cotter Pin4X502
55Tyre Dust Cover2
56Nonmetal Inserts Hexagon Lock NutM816
57Handle Assy1
58Hexagon BoltM8X504
59Draw Bar1
60Drawing Pin1
61Pin Bφ2.5X451
62Bracket Assy1
63Pin D1
64Hexagon Flange BoltM10X751
65Hitch Ball1
66Hexagon Flange BoltM12X752
67Nonmetal Inserts Hexagon Lock NutM122
68Safety Chain2
69Hexagon BoltM10X801
70Buffer Assy1
71Hexagon BoltM10X552
72Emergency Stop Button1
73Limit Switch Tablet1
74Travel SwitchYBLX-ME/81111
75Emergency Stop Handle1
76Control Drawbar1
77Handle Left Clamp1
78Handle Right Clamp1
79Pin Rolln6X251
80Flat Washer C54
81Cross Recess Pan Head ScrewM5X204
82Cotter Pin2X201
83Flat Washer C44
84Nonmetal Inserts Hexagon Lock NutM44
85Cross Recess Pan Head ScrewM4X154
86Standard Spring Washer54
87Hexagon Socket Cone Set ScrewM6X101
88Control Turn Board1
89Control Draw Board1
90Assembly Plate1
91Rotating Plate Damper1
92Spindle1
93Steel Ball1
94Hexagon Socket Button Head ScrewM8×202
95Support Ball Spring1
96Hexagon NutM81
97Stop Button Base1
98Hexagon BoltM8X902

Regular price £1.20 GBP
Sale price £1.20 GBP Regular price
Tax included.

Hurry up! Offer ends in
00 Days
00 Hours
00 Minutes
00 Seconds

Important Ordering Information

Please note:we do not take orders on the website for Europe, The Channel Islands, Isle of Man or Ireland. If you wish to place an order to one of these locations, please give us a call on+44 (0)1228 712121to discuss shipping options

Full Petrol Chipper - Spare Parts details.

This Chipper is an ideal choice for Arborists, Land owners and Gardner’s alike. With its own independent Engine, there’s no need for a tractor to power this surprisingly powerful compact chipper. Built on an extremely well-engineered, heavy duty chassis, great for pulling off road but small enough to get through narrow gate ways and paths. With 2 hardened blades on the rotor and 1 counter blade on the Chassis it creates great quality chip with ease. Double V belts running in parallel ensure a cool running drive. Hitch draw bar supplied and also bolt on pedestrian handle. Now safer than ever, with emergency stop bar and button! Our most popular machine is this little 15HP Petrol Chipper. This machine offers large capability at small price.
