Flail Hedge Cutter - Spare Parts

Flail Hedge Cutter - Spare Parts

Description

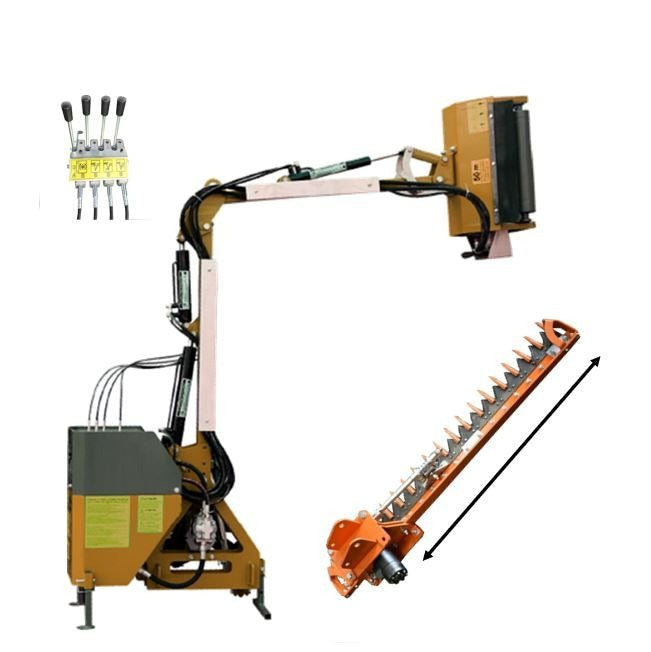

Our best-selling hedge and verge cutting system. Simple to operate, and great for tackling overgrown vegetation and general maintenance of hedgerows and verges.

Includes flail head and scissor trimmer bar. The flail head is ideal for tackling heavier or more overgrown vegetation (hawthorn bramble etc,), and it’s also great for trimming verges and smaller areas of grass. Changing over to the scissor bar takes less than 5 minutes, and this creates a super tidy finish on dense and leafy hedgerows such as leylandii, privet, conifers etc.

Available Parts List

You can use the exploded parts image to cross reference with the part you require.

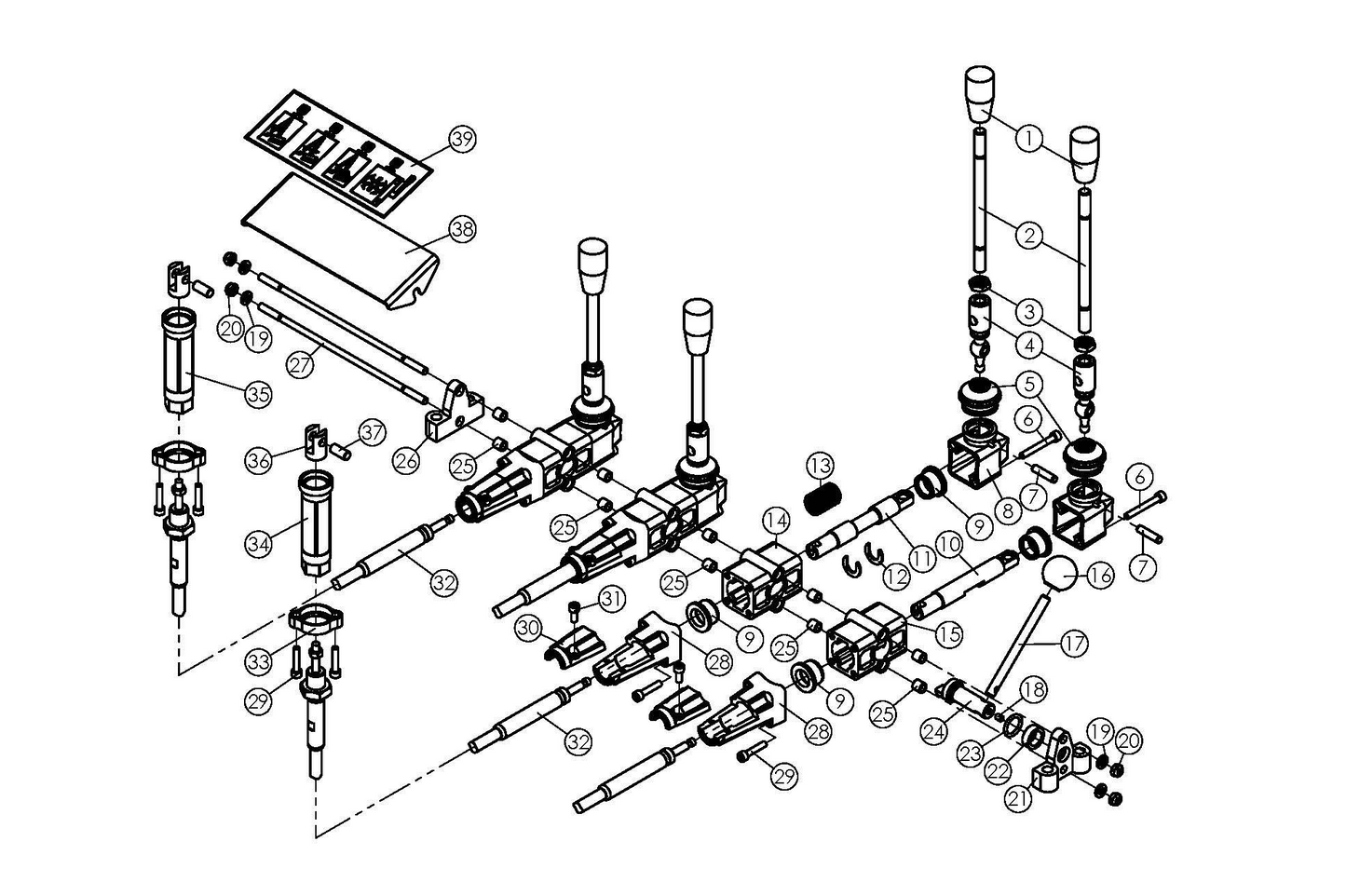

CONTROL UNIT & JOYSTICK ASSEMBLY
No. Name & Spec QTY
1short hand shank4
2Joystick(short)4
3Thin nut4
4Shifting block4
5Protecting bush4
6hexagon socket cap screw8
7B cylindrical pin4
8Upper cover4
9Flange bush8
10Pull rod 21
11Pull rod 13
12Check ring6
13Release spring3
14shell3
15Lock hole shell1
16Bulb hand shank1
17Lock joystick1
18inner hexagon set screw1
19Plain washer4
20hexagon locking thin nut4
21fixed seat 21
22bush1
23O sealing1
24Lock shaft1
25Locating sleeve10
26Fixed seat 11
27Screw rod2
28Lower cover4
29hexagon socket cap screw16
30Lower cover4
31hexagon socket cap screw8
32dragline4
33flange4
34Pressure casting3
35flaring pressure casting pipe1
36Aluminum connector4
37pin4
38Label plate1
39label1

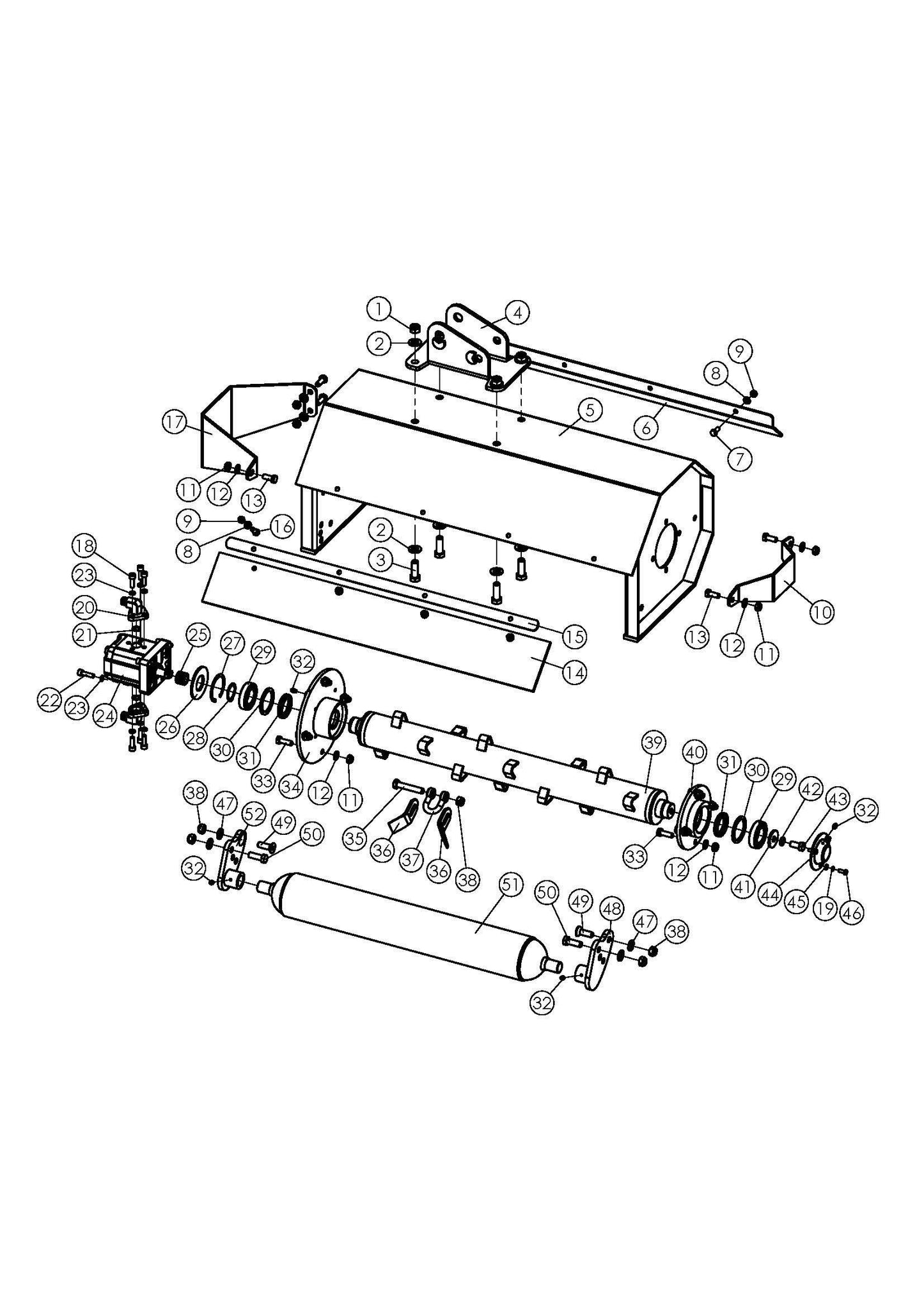

MOWER HEAD & FRAME ASSEMBLY
No. Name & Spec QTY
1hexagon locking thin nut4
2Plain washer8
3Screw bolt4
4hitch frame weldment1
5Hood weldment1
6Head board1
7Screw bolt4
8Plain washer8
9hexagon locking thin nut8
10shaft end cover plate1
11hexagon locking thin nut13
12Plain washer13
13Screw bolt5
14rubber board1
15Pressing bar1
16Screw bolt4
17motor guard board1
18hexagon socket cap screw6
19Spring washer3
20motor oil in and out connector2
21O sealing2
22hexagon socket cap screw4
23Spring washer10
24Hydraulic motor1
25splined hub1
26motor positioning plate1
27A checking ring1
28A shaft checking ring1
29Deep groove ball bearing2
30Oil sealing check ring2
31FB oil seal2
32Oil cup4
33Screw bolt8
34Main bearing seat1
35half thread bolt16
36blade32
37blade buckle16
38hexagon locking thin nut20
39-1Blade shaft1
39-2Blade shaft1
39-3Blade shaft1
40second bearing seat1
41Locking gasket1
42Spring washer1
43Screw bolt1
44End cap1
45Plain washer3
46Screw bolt3
47Plain washer4
48roller shaft seat 11
49inner hexagon sunk screw2
50Screw bolt2
51-2Roller weldment (AM80)1
51-3Pulley weldment(AM100)1
52Roller shaft 21

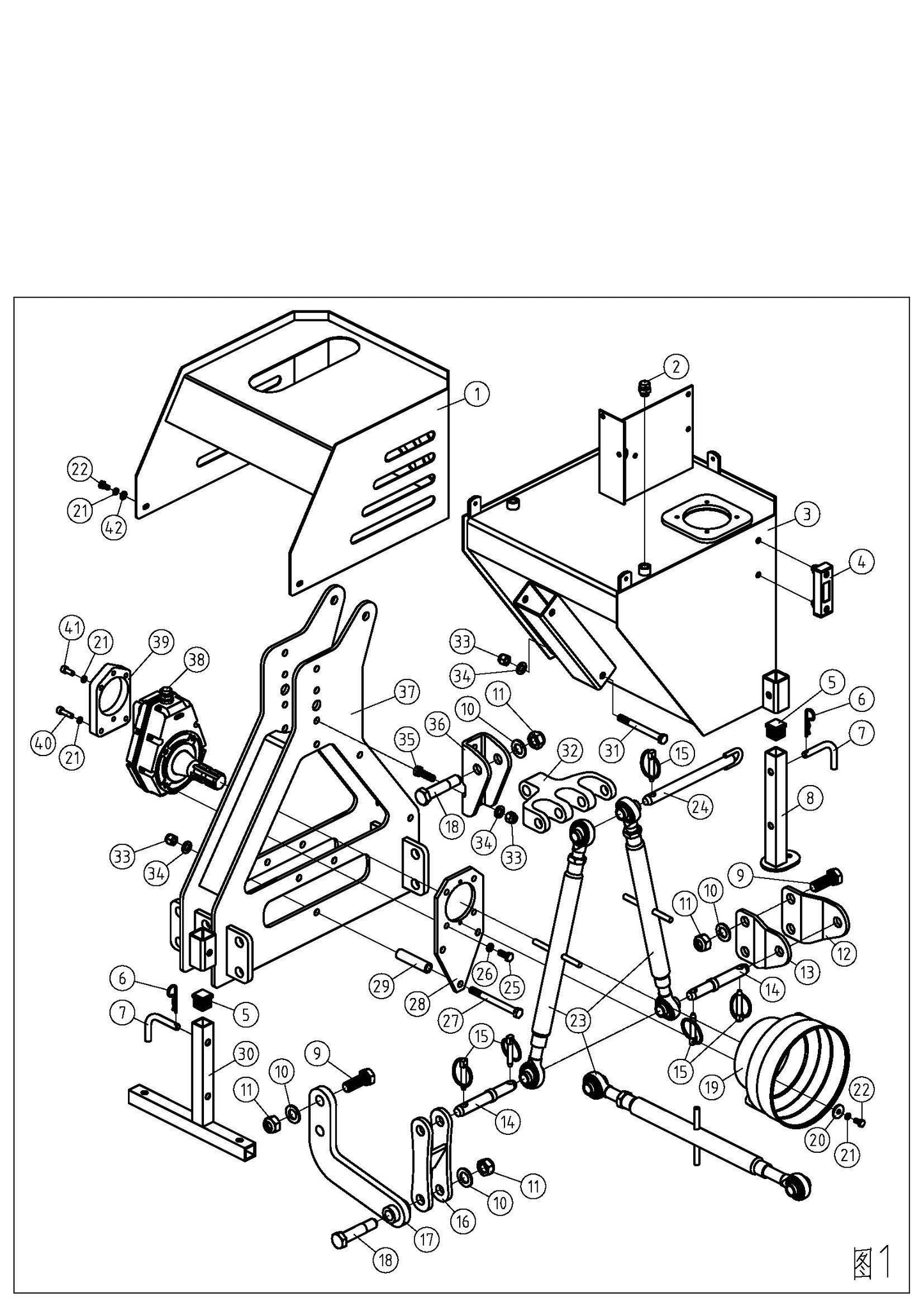

TANK & MAIN FRAME ASSEMBLY
No. Name & Spec QTY
1fuel tank cover1
2Air plug M16X1.52
3Fuel tank1
4Liquid level meter1
5End cover3
6Middle R pin4
7D square cotter3
8Support leg 22
9Screw bolt4
10Plain washer9
11hexagon locking thin nut9
12Down hook plate 11
13Down hook plate 11
14Down pull rod pin shaft2
15Lock pin assembly5
16Lifting eye weldment1
17connecting lever weldment1
18articulation bolt2
19PTO shaft cover1
20Extra-large plain washer10
21Spring washer5
22Screw bolt5
23Adjusting pull rod3
24upper pull rod pin shaft weldment1
25fin thread screw bolt4
26Spring washer4
27Half screwed bolt3
28gear box fixed plate1
29Spacer bush3
30Support leg 11
31half thread bolt2
32Three joint forks1
33hexagon locking thin nut3
34Plain washer8
35Screw bolt3
36Upper hook frame1
37bed frame weldment1
38oil pump transmission box1
39transition connecting plate1
40Hexagon socket cap screw2
41Hexagon socket cap screw2
42Plain washer4

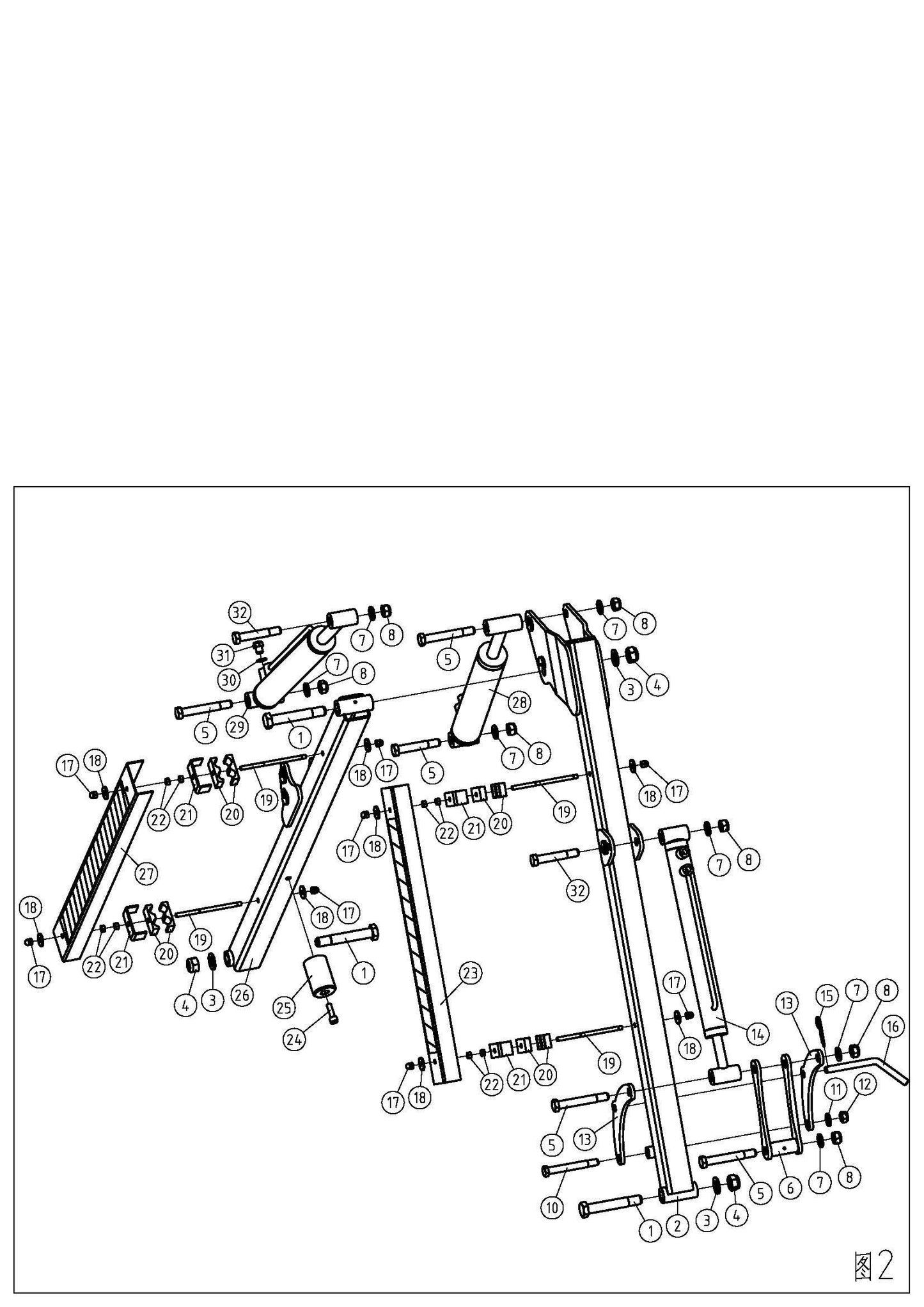

ARM & CYLINDER ASSEMBLY
No. Name & Spec QTY
1Articulation bolt3
2Small support arm1
3Plain washer9
4hexagon locking thin nut9
5Articulation bolt4
6pushing pull plate1
7Plain washer7
8hexagon locking thin nut7
10Articulation bolt1
11Plain washer1
12hexagon locking thin nut1
13Swing arm2
14Swing arm cylinder1
15Middle R pin4
16Lock pin1
17nut with cap8
18Extra-large plain washer10
19Screw rod4
20Oil tub clip8
21Pressing plate4
22Hexagon nut8
23oil tube short cover1
24Hexagon socket cap screw1
25buffering limited block1
26big support arm1
27oil tube long cover1
28Smaller arm cylinder1
29big arm cylinder1
30Bonded washer 14.7X22X1.51
31Breathe filter1
32Articulation bolt3

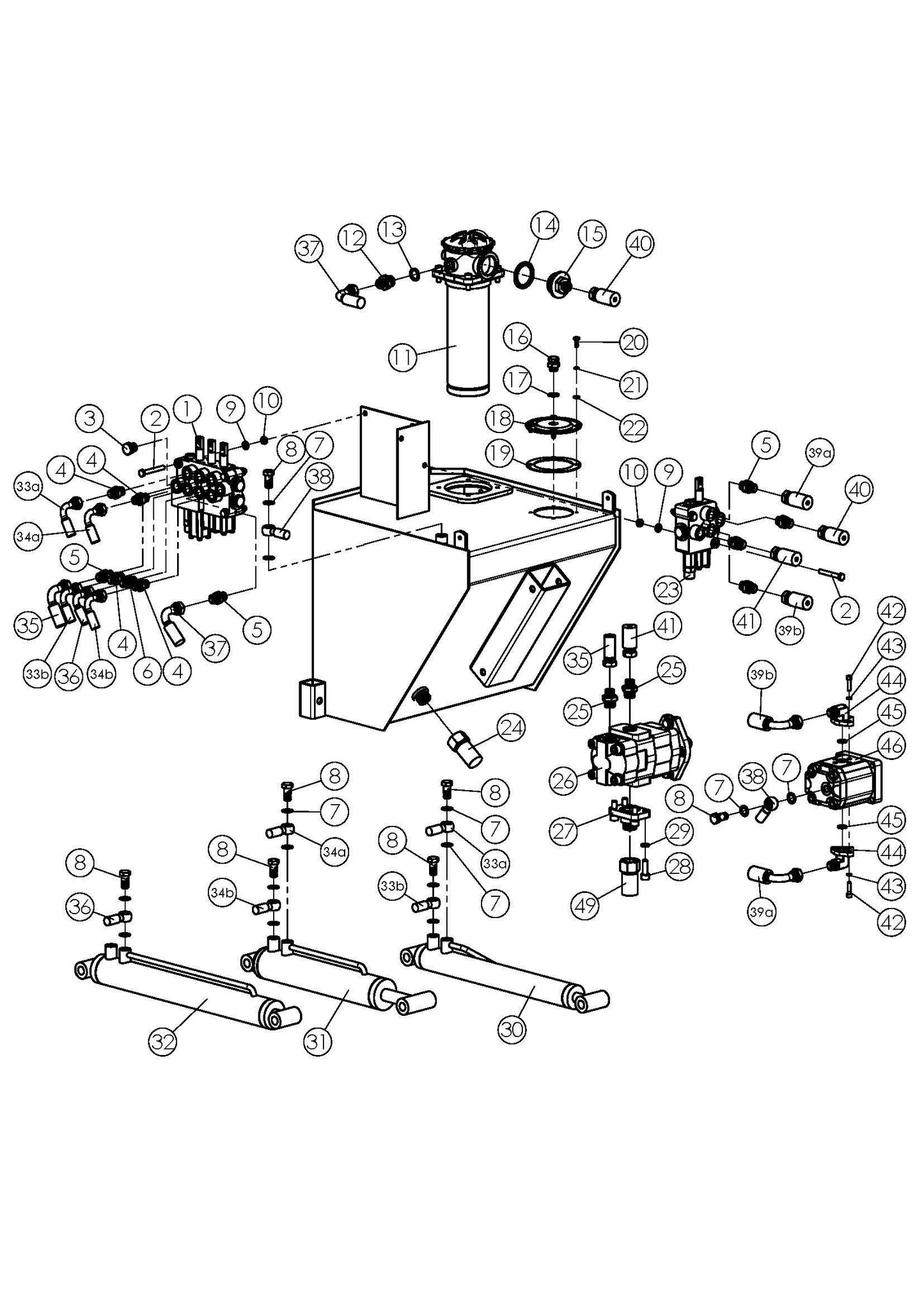

HYDRAULIC SYSTEM COMPONENTS
No. Name & Spec QTY
1Three-way valve1
2half thread bolt5
3inner hexagon tapered plug1
4oil in and out connector3
5connector M18X1.5-G3/86
6valve throttle connector2
7Bonded washer14.7X22X1.514
8Hinge joint bolt6
9Plain washer5
10hexagon locking thin nut5
11Return oil filter1
12M18X1.5(both end) adapter1
13O sealing ring1
14Bonded washer M421
15Oil filter adapter1
16Air plug M16X1.51
17Bonded washer M161
18Fuel tank cap1
19fuel tank sealing gasket1
20Screw bolt4
21Spring washer4
22Plain washer4
23Single valve1
24oil pump inlet tube1
25Transition connector M18X1.5-G1/2X142
26Duplex gear pump1
27oil pump oil inlet adapter1
28hexagon socket cap screw4
29Spring washer4
30Swing arm cylinder1
31Small arm cylinder1
32Big arm cylinder1
33Swing arm cylinder tube2
34small arm cylinder tube2
35oil pump to triple valve tube1
36big arm cylinder tube1
37triple valve outlet tube1
38motor oil return tube1
39motor oil filling tube2
40single valve to oil filter tube1
41oil pump outlet tube1
42hexagon socket cap screw6
43Spring washer6
44motor oil in and out connector2
45O sealing ring2
46Hydraulic motor1

Regular price £4.00 GBP
Sale price £4.00 GBP Regular price
Tax included.

Hurry up! Offer ends in
00 Days
00 Hours
00 Minutes
00 Seconds

Important Ordering Information

Please note:we do not take orders on the website for Europe, The Channel Islands, Isle of Man or Ireland. If you wish to place an order to one of these locations, please give us a call on+44 (0)1228 712121to discuss shipping options

Full Flail Hedge Cutter - Spare Parts details.

Our best-selling hedge and verge cutting system. Simple to operate, and great for tackling overgrown vegetation and general maintenance of hedgerows and verges.

Includes flail head and scissor trimmer bar. The flail head is ideal for tackling heavier or more overgrown vegetation (hawthorn bramble etc,), and it’s also great for trimming verges and smaller areas of grass. Changing over to the scissor bar takes less than 5 minutes, and this creates a super tidy finish on dense and leafy hedgerows such as leylandii, privet, conifers etc.
