Heavy Pro Verge Mower - Spare Parts

Heavy Pro Verge Mower - Spare Parts

Description

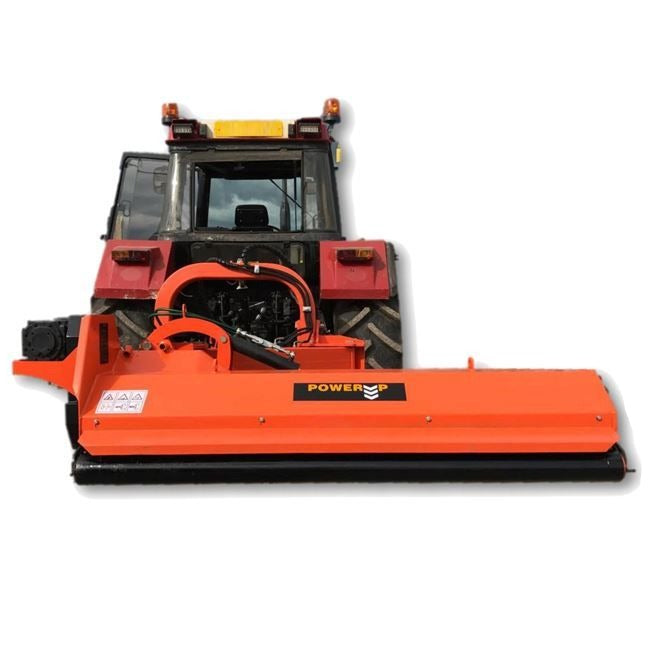

Maximum Versatility

First and foremost, this mower offers all the proven advantages of a flail mower. However, it goes further. Thanks to its advanced hydraulic system, the machine can be offset well beyond the tractor. In addition, it can tilt vertically and downwards.

Effortless Reach

As a result, cutting grass verges becomes simple. Likewise, hedge sides, banks, and ditches can be maintained with ease. At the same time, the mower remains perfectly capable of mowing open fields efficiently.

Built for Demanding Work

Furthermore, the mower is built to a high standard. Its robust construction ensures long service life. Consequently, it is ideally suited to both farm and contracting work where reliability matters.

Designed by Users

Importantly, this machine has been developed using direct feedback from farmers and contractors. Therefore, every detail reflects real working conditions. Ultimately, it becomes a valuable and practical addition to any farming or contracting operation.

Safety as Standard

Finally, the mower is fully HSE compliant. It features a range of integrated safety systems. As a result, operators benefit from improved confidence, safety, and peace of mind.

Available Parts List

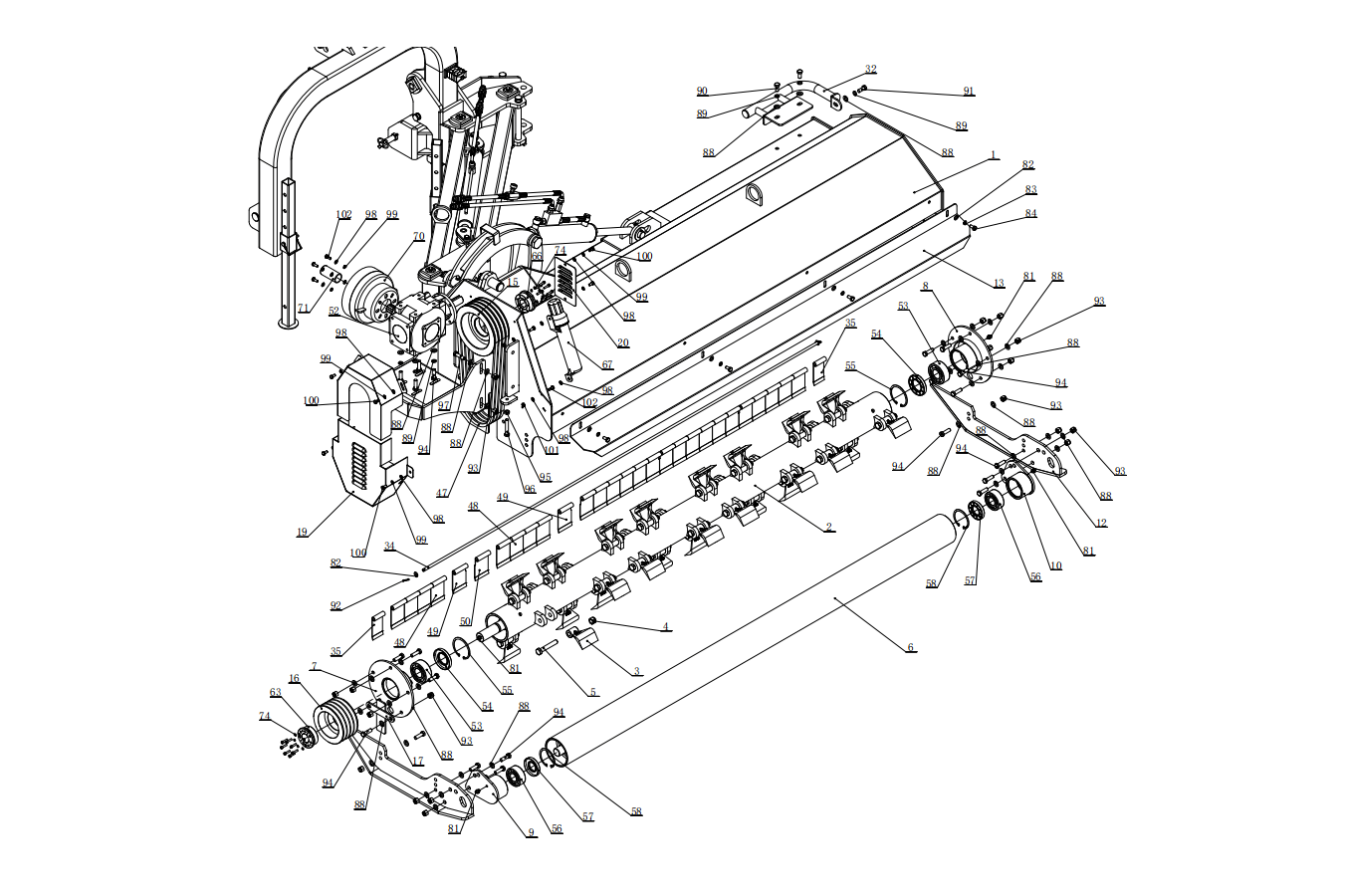

You can use the exploded parts image to cross reference with the part you require.

# on the Diagram. N&M Type Quantity
1 Mower housing shell 1
2 Mower cutting Shaft 1
3 Hammer blade 32
4 Prevailing torque type hexagon nut with non-metallic insert M16 32
5 Hexagon bolt M16×90 32
6 Roller 1
7 Cutting shaft bearing block A 1
8 Cutting shaft bearing block B 1
9 Roller bearing block A 1
10 Roller bearing block B 1
11 Bottom slide plate A 1
12 Bottom slide plate B 1
13 Roller fender apron 1
14 Gearbox bed plate 1
15 Pulley 1
16 Driven pulley 1
17 Housing shell block 1
18 Belt cover upper 1
19 Belt cover under 1
20 Heating panel 1
21 Vertical turnover body 1
22 Vertical swing arm A 1
23 Vertical swing arm B 1
24 Vertical displacement cylinder 1
25 Horizontal swing arm A 1
26 Horizontal swing arm B 1
27 Horizontal swing body 1
28 Horizontal displacement cylinder 1
29 Supporting leg 2
30 Drawbar beam 1
31 Hook 1
32 Shell protection plate 1
33 Compact washer 1
34 Protect slice rotate shaft 1
35 Protect slice 2
36 Hitch pin A 2
37 Hitch pin B 2
38 Towing beam fixed pin 1
39 Towing beam limit pin 1
40 Horizontal move limit pin 2
41 Horizontal swing fixed pin 4
42 Horizontal move cylinder pin 2
43 Vertical rotate fixed pin A 2
44 Vertical rotate fixed pin B 1
45 Vertical rotate fixed pin C 1
46 Vertical swing arm gasket 2
47 Belt BX 1050 Li 4
48 Protect slice A 20
49 Protect slice B 4
50 Protect slice C 4
51 Hexagon lock nut M42x3 1
52 Gearbox 1
53 Bearing 3308 A 2
54 Seal 50X90X12 2
55 Hole Circlip A 90 2
56 Bearing 3307 A 2
57 Seal 40X80X12 2
58 Hole Circlip A 80 2
59 Dry Bearing 80 80X85X55 2
60 Dry Bearing 40 40X45X50 8
61 Dry Bearing 30 30X34X30 4
62 Power lock 40 1
63 Power lock 40 1
64 Hexagon socket head cap screw M6X25 14
65 Power lock 33 1
66 Power lock 33 1
67 Manual tube 1
68 Pipe clamp 16 1
69 Safety lock 1
70 PTO cover 1
71 PTO protect sleeve 1
72 Prevailing torque type hexagon nut with non-metallic insert M36x2 4
73 Flat washer C 36×5 4
74 Standard spring washer 6 14
75 Prevailing torque type hexagon nut with non-metallic insert M24x1.5 3
76 D type pin 2
77 O type spring pin Φ10X50 4
78 R type pin Φ4x75 3
79 Flat washer C 24 1
80 Cotter 4X50 4
81 Grease fitting M10X1 12
82 Flat washer C 10 11
83 Spring washer 10 5
84 Hexagon bolt M10X20 5
85 Prevailing torque type hexagon nut with non-metallic insert M10 2
86 Hexagon bolt M10X30 2
87 Flat washer C 30×4 2
88 Flat washer C 12 51
89 Standard spring washer 12 7
90 Hexagon bolt M12X25 2
91 Hexagon bolt M12X35 1
92 Cotter 4X45 2
93 Prevailing torque type hexagon nut with non-metallic insert M12 22
94 Hexagon bolt M12X40 22
95 Hexagon nut M12 2
96 Hexagon bolt M12X70 2
97 Hexagon bolt M12X45 4
98 Flat washer C 8 14
99 Standard spring washer 8 10
100 Hexagon bolt M8X16 6
101 Prevailing torque type hexagon nut with non-metallic insert M8 2
102 Hexagon bolt M8X20 6
103 Hydraulic lock 1
104 Throttle valve 1
105 Quick coupling Male 4
106 Straight joint Long 1
107 Straight joint 1
108 Hinged bolt M16X1.5 2
109 Seal washer n16 4
110 Oil pipe connection 1
111 Oil pipe connection 1
112 Oil pipe 1
113 Oil pipe 1
114 Oil pipe 1
115 Oil pipe 2
116 Vertical move cylinder 1
117 Horizontal move cylinder 1
