Briggs & Stratton 25T2 13.5HP Petrol Engine XR13.5

Briggs & Stratton 25T2 13.5HP Petrol Engine XR13.5

Description

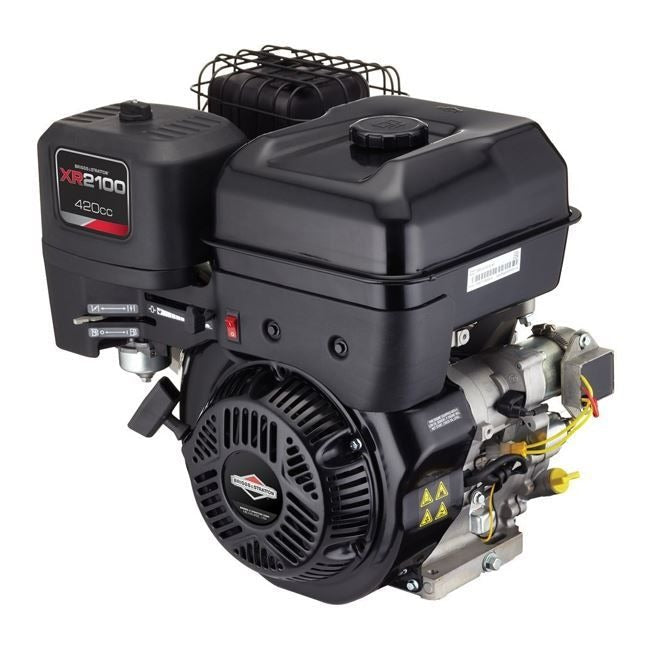

Briggs & Stratton XR13.5 Petrol Engine

Built to Perform

First and foremost, the Briggs & Stratton XR13.5 petrol engine is tough, reliable, and efficient.
Furthermore, it is a suitable replacement for the Honda GX390.

With 28.48 Nm gross torque and a 420cc displacement, the XR2100 engine delivers strong, consistent output. As a result, it handles multiple tasks with ease, even in the most demanding work environments.

Long Engine Life

To begin with, the XR engine is engineered for durability. It incorporates proven commercial-grade components, including a cast iron cylinder sleeve, forged crankshaft, and dual ball bearings.

In addition, these features significantly extend engine life. Moreover, extensive laboratory testing and real-world site trials confirm long-term reliability. Consequently, the XR engine continues to perform at a high level in demanding machinery applications.

Easy Starting

Equally important, the XR engine offers excellent starting performance.
Specifically, this is achieved through a carefully configured carburettor, a large inertia decompression system, and a high-energy ignition system.

As a result, the engine starts effortlessly. Whether hot or cold, downtime is reduced and productivity is maintained.

Robust Power Output

Likewise, power delivery is both strong and efficient.
The overhead valve (OHV) design and computer-aided combustion chamber improve combustion efficiency. Therefore, the engine produces robust power while simultaneously reducing fuel consumption.

Manufacturer’s Specification

For further information, full technical specifications are available on the manufacturer’s website:
https://www.briggsandstratton.com/na/en_us/product-catalog/engines/utility-engines/xr13_5.html




Available Parts List

You can use the exploded parts image to cross reference with the part you require.

Product Specification

Briggs and Stratton XR13.5 Engine
Model Number 25T2
Engine Technology Single cylinder, 4-stroke
Gross Torque 28.48 @ 2,600 rpm
Displacement 420 cc
Bore 90 mm
Stroke 66 mm
Fuel Tank Capacity 6.57 L
Cylinder Cast Iron sleeve
Oil Capacity 1.1 L
Dimensions (Length) 458 mm
Dimensions (Width) 375 mm
Dimensions (Height) 444 mm
Dry Weight 32.5 kg

Regular price £550.00 GBP
Sale price £550.00 GBP Regular price
Tax included.
